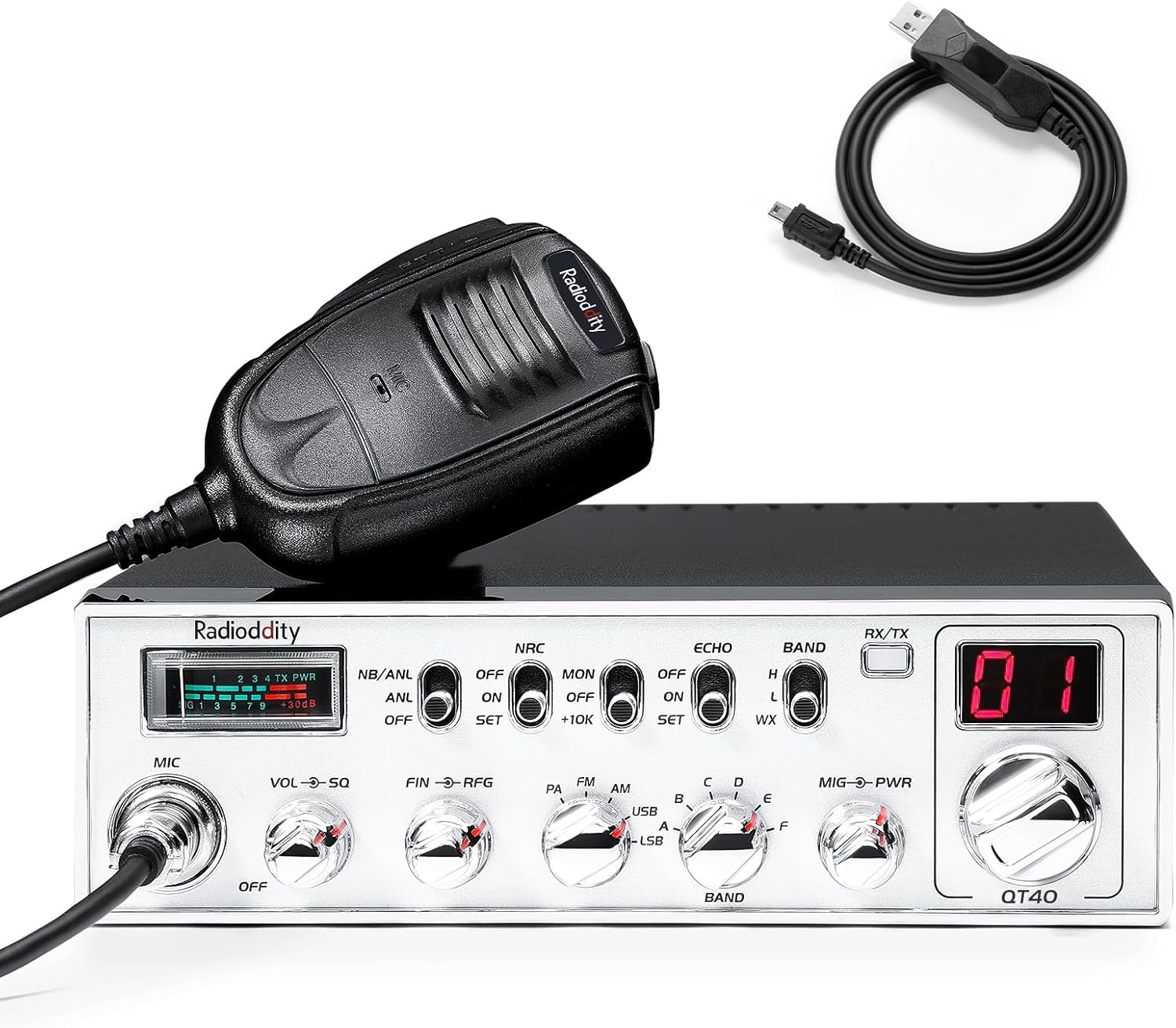

Radioddity QT40 10 Meter SSB Ham Radio, Digital Noise Reduction 40W High Power Amateur Radio with NOAA Alert, AM/FM/PA Mobile Transceiver with CTCSS/DCS, USB Programming Cable, Perfect for Truck
Radioddity QT40 10 Meter SSB Ham Radio, Digital Noise Reduction 40W High Power Amateur Radio with NOAA Alert, AM/FM/PA Mobile Transceiver with CTCSS/DCS, USB Programming Cable, Perfect for Truck

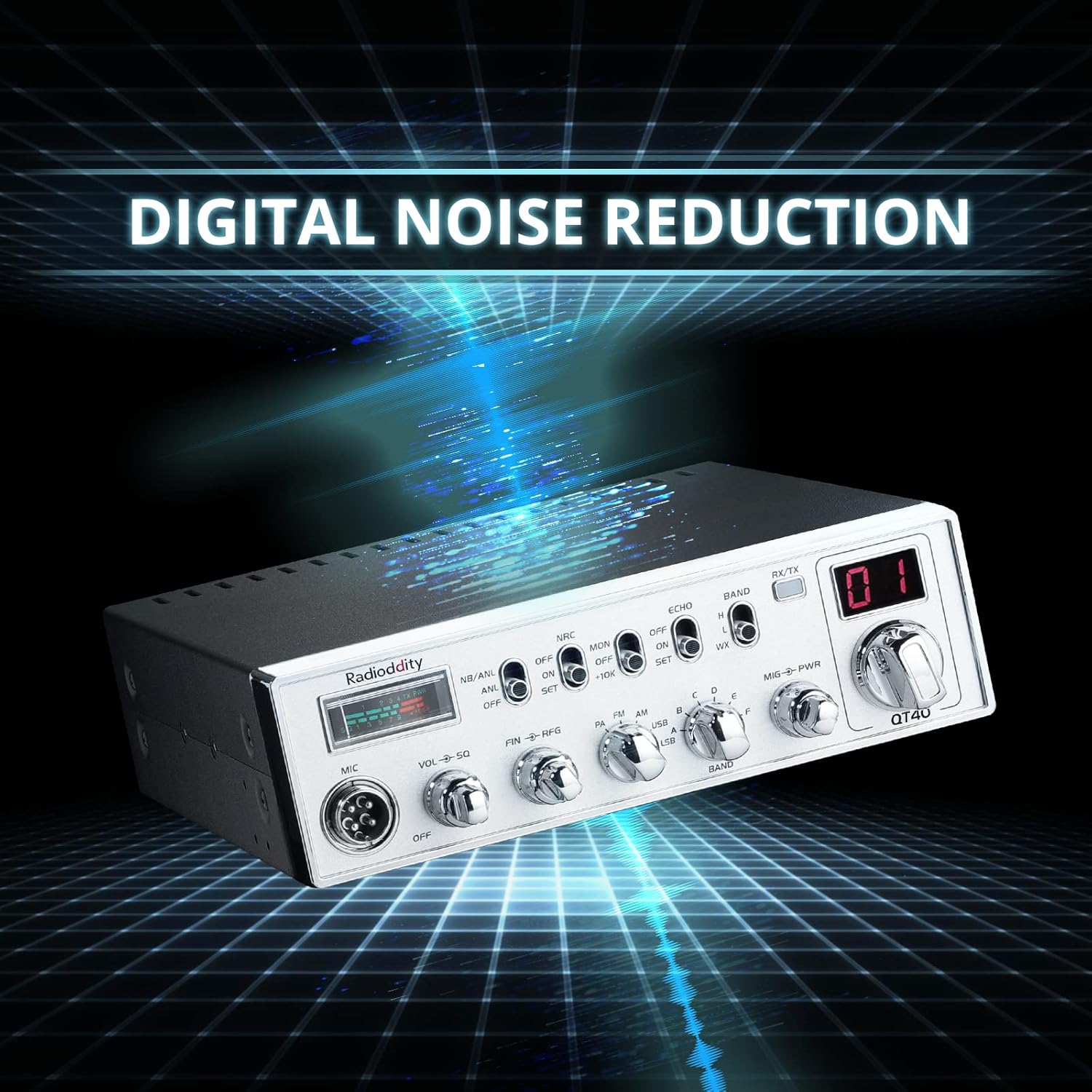

Noise Reduction: With TX and RX digital noise reduction technology. the QT40 ensures that you'll never have to strain to hear or be heard in noisy environments.
Accurate Signal Meter: The PWR/RX RSSI Signal Meter provides you with a clear picture of your signal strength. helping you to optimize your communication for the best possible results.
Weather Channel: With its impressive weather band and NOAA alert feature. you can stay ahead of the curve and be prepared for any sudden changes in the weather. Whether you're out camping. hiking. or simply enjoying a day out in the park. this radio has got you covered.
Customizable Features: The QT40 is equipped with a range of customizable features. including CTCSS/DCS. ASQ. SQ function. RF gain control. TOT. VOX. HI-CUT function. and echo function. giving you complete control over your communication experience.
Frequency Range: RX/TX: 28.000-29.695MHz (Programmable); RX: VHF: 140-170MHz & Weather band.
Frequency Band: L/H band: A/B/C/D/E/F.
Channel: 480 channels (40 programmable per band)
Frequency Control: Phase-Locked-Loop Synthesizer
Frequency Tolerance: ± 5.0 ppm
Temperature Range: -20°C to 50°C

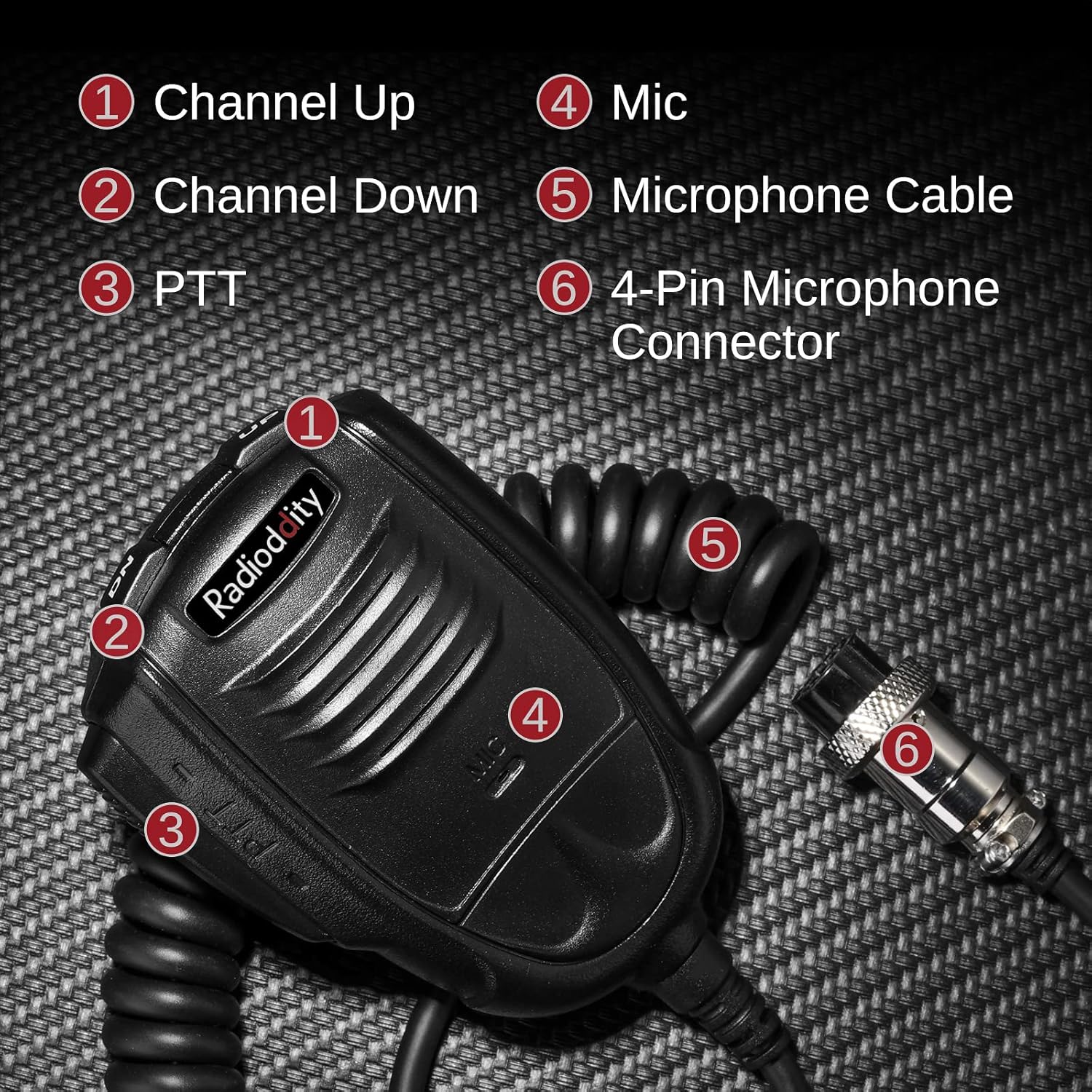

Microphone: with push-to-talk /UP/DN and coiled cord
Input Voltage: 13.8V

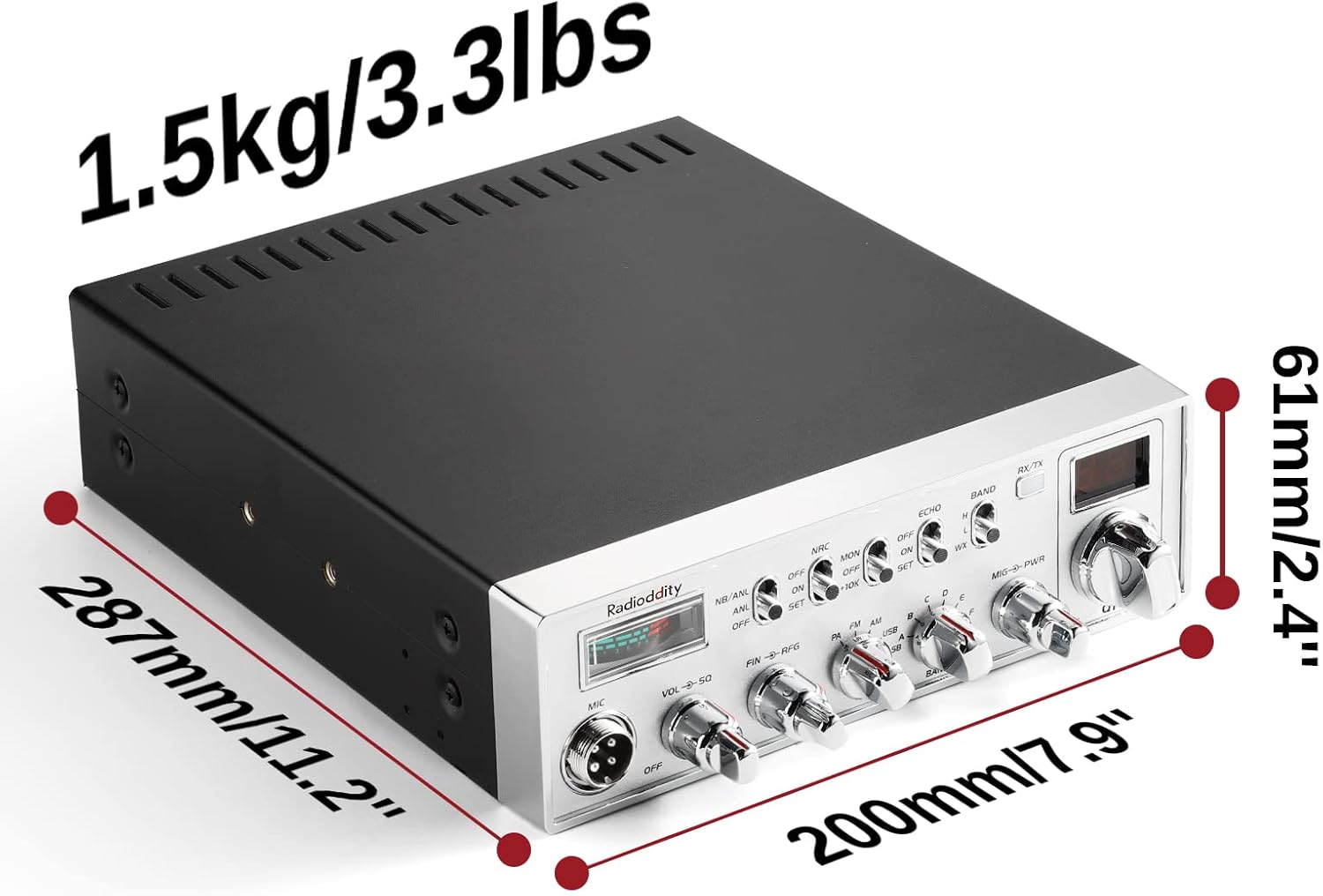

Dimensions: 11.2 x 7.9 x 2.4''
Weight: 3.3lbs

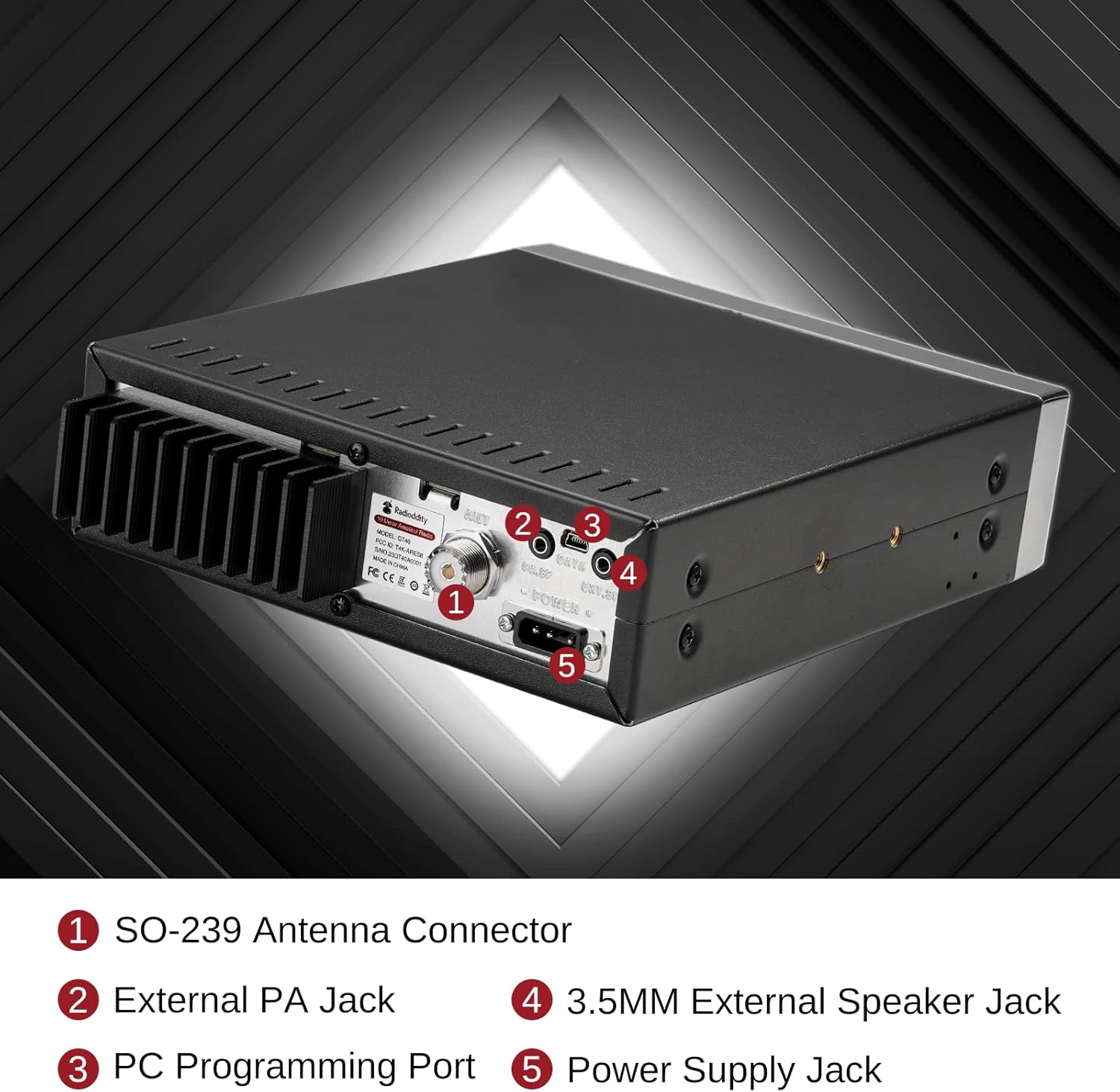

Antenna Connector: UHF. SO-239
VOX Level: 0-9
Roger Beep Level: Off. 01-05
LED Brightness Level: 1-3
Q1: Why can't I hear any sound or receive signals on most bands?
A: This is often related to the Squelch (SQ) or RF Gain settings. If the Squelch is set too high. it filters out all incoming signals. Please try turning the SQ knob counter-clockwise to the minimum to see if static returns. then adjust gradually. Also. ensure your antenna is properly tuned for the specific band you are using.
Q2: How do I fix "Low Modulation" issues during transmission?
A: First. check the Mic Gain settings in the menu. To ensure your voice is crisp and clear on SSB or other modes. speak directly into the microphone at a consistent distance.
Q3: Is this radio legal to use in the US?
A: Our radio is designed for licensed amateur radio operators and complies with FCC part 15B regulations. FCC ID: T4K-ARESII. To operate on the 10-meter band in the US. an Amateur Radio License is required. Technician Class licensees have limited segments (28.000-28.500 MHz). while General Class and above have full access to the entire band.
Q4: Why is my SWR pegged out and there is no receive audio?
High SWR is usually caused by poor antenna grounding or placement. Ensure your antenna mount has solid contact with bare metal on the vehicle chassis. For no audio. check if PA mode is accidentally turned on. or if the Squelch is set too high. If the indicator illuminates yellow and shows Error Code E5 (TX SWR too high). stop transmitting immediately to protect the radio.
Q5: Why is the scan function not working?
You MUST adjust the Squelch (SQ) knob until the background static noise just disappears BEFORE activating the scan. If the squelch is open (static is heard). the scan function will not start.
Q6: How can I fix the product issue asap?
We provide lifetime suppor t. You can reach us via two ways:
1: From your Order Page (Recommend). Go to "Your Orde rs" > Find this orde r > Click "Get product support" or "Contac t seller".
2: From the Product Page.Look under the "Bu y Now" button > Click on "Radioddity" > Click the "As k a question" button.
Our tech team will reply within 24 hours with professional troubleshooting steps.
Thanks to the VOX function. you can keep your hands free while communicating. The QT40 automatically detects your voice and starts transmitting. allowing you to focus on driving or other tasks while staying in contact.
Power OutputAM:1-12W (adjustable). FM:1-40W (adjustable). USB/LSB:1-35W (adjustable)Drain 8A (with modulation)Modulation FM/AM/SSBInter-modulation Distortion SSB: 3rd order. more than -25dB; 5th order. more than -35dBSSB Carrier Suppression 55dBUnwanted Sideband 50dBFrequency Response AM/FM: 450 to 2500HzOutput Impedance 50ohms. unbalancedWhat's in the box?QT40 Radio x 1. Microphone x 1. USB Programming Cable x 1. Accessories (Mounting Bracket x 1 Screw for Bracket x 2 Pad for Bracket x 2Microphone Hanger x 1 Adhesive Case Protection x 2 DC Power Cablex 1 Adjusting Screw x 2 Spare Fuses(10A. 250V) x 1 Self-tapping Screw x 2 Pad x 2)Sensitivity AM:1.0μV for 10 dB(S+N)/N at greater than 1/2watt of audio output. FM: 1.0 μV for 20 dB (S+N)/N at greater than ½ watt of audio output. SSB: 0.25μV for 10dB(S+N)/N at greater than ½ watt of audio output.Selectivity AM/FM:6dB @3KHz.50dB @9KHzSSB: 6 dB @2.1KHz.60dB @3.3KHzAdjacent-Channel Selectivity60dB AM/FM &70 dB SSBImage Rejection More than 65dBIF Frequency AM/FM: 10.695 MHz 1st IF. 455 KHz 2nd IF SSB: 10.695 MHzRF Gain Control45dB adjustable for optimum signal receptionAutomatic Gain Control(AGC)Less than 10dB change in audio output for inputs from 10 to 100.000μVSquelch Adjustable; threshold less than 0.5 μV. Automatic Squelch Control(only AM/FM)0.5 μVANL (Active Noise Limiter) SwitchableNoise Blanker RF type. effective on AM/FM and SSBAudio Output Power 3 watts into 8 ohmsFrequency Response AM/FM: 300 to 2800 HzBuilt-in Speaker 8 ohms. roundExternal Speaker(Not Supplied)8 ohms. disables internal speaker when connected
